Precision Investment Casting Foundry & OEM Services
At the heart of our OEM Services lies the Casting Foundry, where molten metal meets the art of precision engineering. We breathe life into your designs, crafting OEM components with exacting accuracy and uncompromising quality. Every casting is traceable and raw materials’ contents & proportions are assured correctly before making castings. From raw material to final form, our casting expertise ensures that your creations stand resilient and reliable, ready to endure the demands of diverse industries.
Factory Overview
Established Since: 1999
Employees: 35
Capacity: 30~50 Tons per month (max.)
Certificates
- NK Certificate
- BV Certificate
- DNV-GL
- ISO 9001:2015
- LR Certificate
- PED Certificate
Equipments
- High-Frequency Furnaces
- Sand-Blasting Machine
- Sand-Cleaning Machine
- Acidic Bath
- Wax Injection Machines
- Spectrometer
- Hardness, Tensile, Impact Equipment
- 3D CMM (Coordinate Measuring Machine)
- High/Low Temperature Testing Equipment
Products Capability
- Investment (Lost Wax) Casting parts, Valve parts, Pump parts, Machine Components, Hardware, Automotive Components, etc.
- Weight: 10 g to 50 kgs
- Dimensions Max.: 600 x 500 x 200 mm
- Wall thickness tolerance: ± 0.15mm ~ ± 0.4mm
- Angular tolerance: ± 0.5° ~ ± 1°
- Material: 1.0619, 1.4408, 1.4308, 1.4571, etc.
- Standards: ASTM, AISI, EN, JIS available upon request
Foundry Facilities
Testings Available
- Material Analysis Testing
- Impact Testing
- Tensile Strength Testing
- Hardness Test
- Penetrate Test (optional)
- X-Ray Radiograph (optional)
- Coordinate Measuring (optional)
- Intergranular Corrosion Measurement (optional)
Materials Available Upon Request
| Code | JIS | ASTM | UNS | DIN (W.Nr.) |
|---|---|---|---|---|
| 304 | SCS13A | A351 CF8 | J92600 | 1.4308 |
| 316 | SCS14A | A351 CF8M | J92900 | 1.4408 |
| 304L | SCS19A | A351 CF3 | J92500 | 1.4309 |
| 316L | SCS16A | A351 CF3M | J92800 | 1.4409 |
| WCB | SCPH2 | A216 WCB | J03002 | 1.0619 |
| 410 | SCS1X | A743 CA15 | J91150 | - |
| ALLOY20 | SCS23 | A351 CN7M | J95150 | 1.4536 |
| 347 | SCS21X | A351 CF8C | J03002 | - |
| 317 | SCS34 | A351 CG8M | J93000 | - |
| 317L | SCS35 | A351 CG3M | J92999 | - |
| 17-4pH | SCS24 | A747 CB7Cu-1 | J92180 | - |

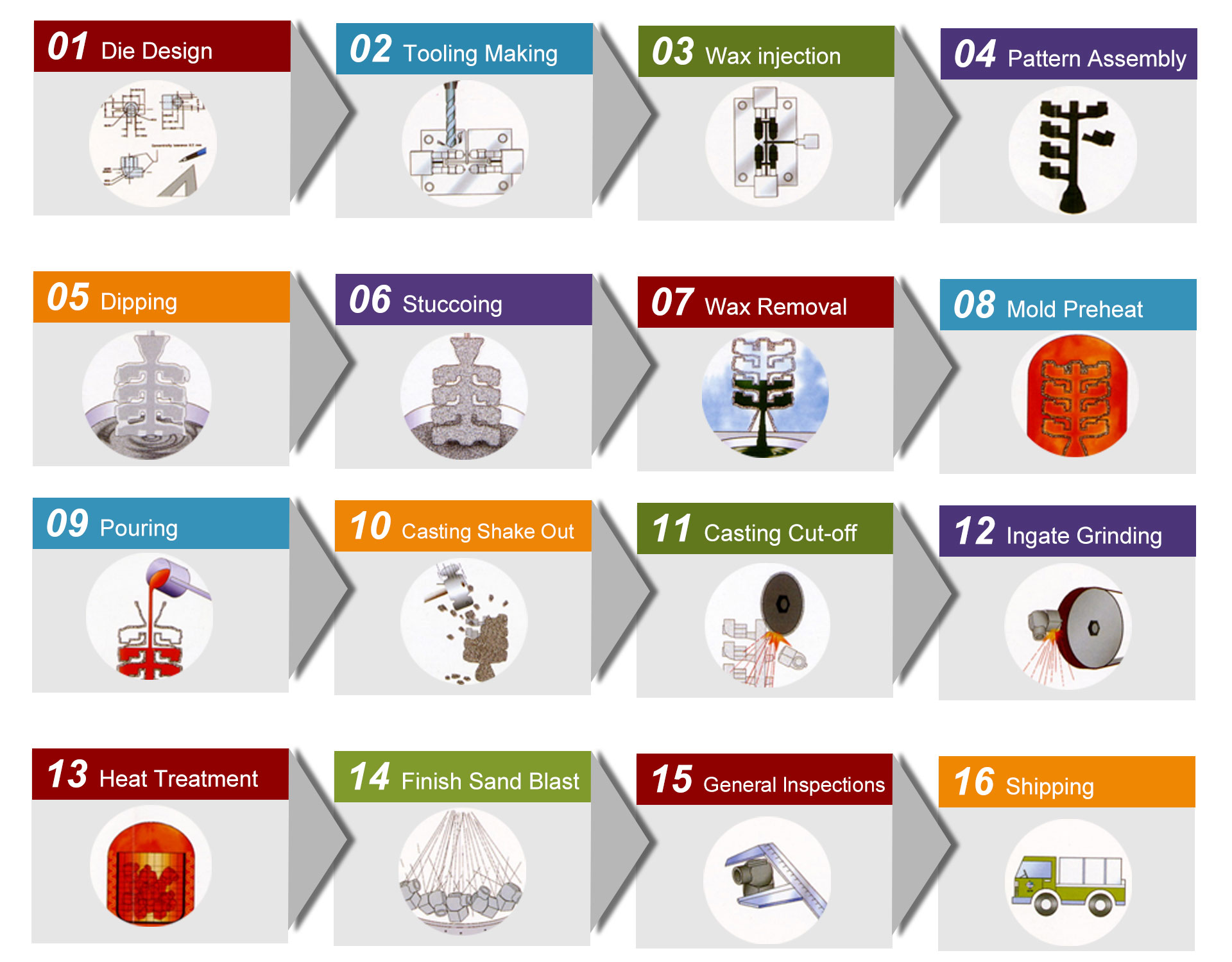

Manufacturing Process

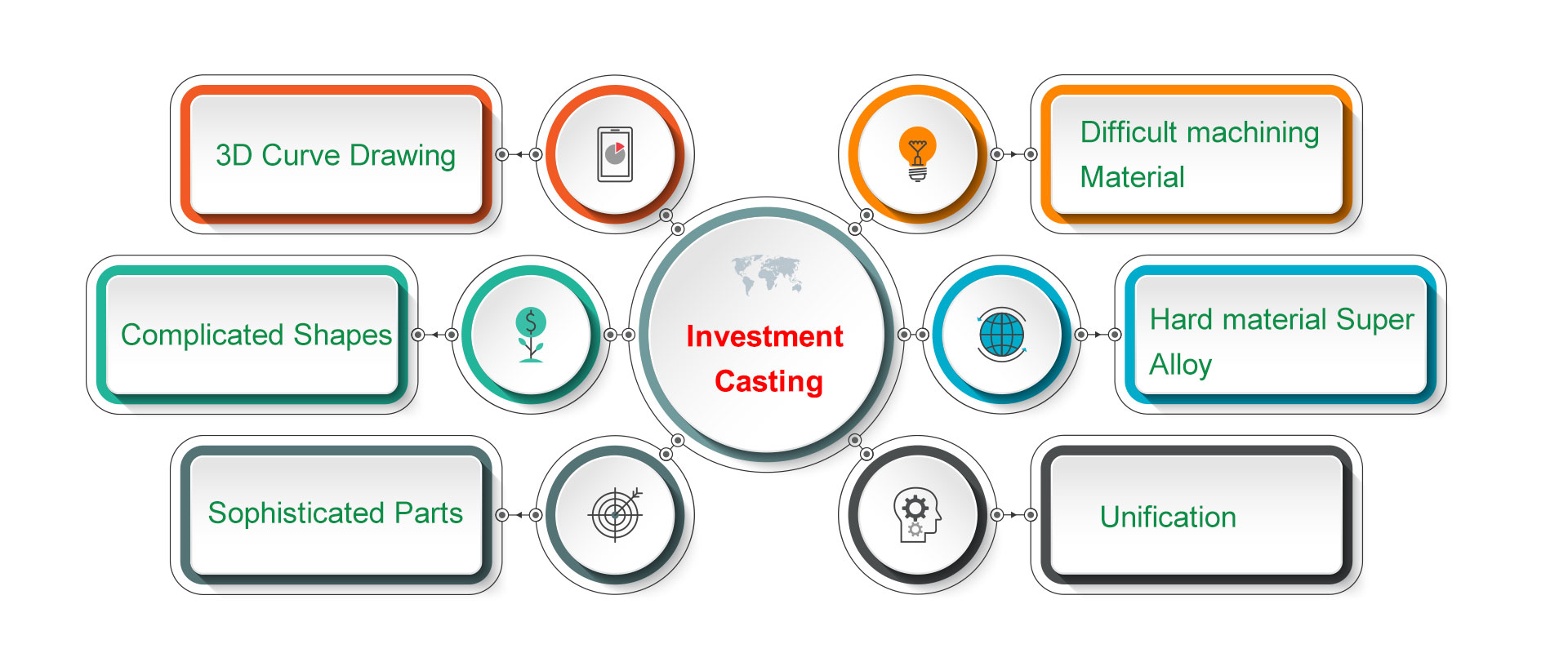

Concept For Investment Casting Process
